TCM Lite series
TCM Lite Range
Explore efficient material handling - without compromise!
The TCM LiTE Range is a competitive and affordable range of material handling equipment designed for low to medium intensity operations. Streamlined for ease of use, simple maintenance and great value without compromising engineering excellence, long-term performance and outstanding reliability.
At TCM, we have a cost-effective solution to cover all your base requirements without compromising on quality or design.
Simple yet sustainable
Using simple components and stripping away all additional extras, the Lite Range provides you with minimalist equipment to get the job done while reducing waste and maintenance needs, without sacrificing efficiency.
All products in the Lite Range are powered by lithium-ion batteries for optimal convenience. They can be recharged at a faster rate than other commercial battery types, can be used across multiple shifts and have a longer overall battery life. Lithium-ion is the most economical battery type, using 30% less energy, which contributes towards reducing your total cost of ownership (TCO) and a more sustainable fleet.
Easy to use and comfortable
Designed with the same innovation and ergonomics as our other ranges, you can be sure you are getting the same comfort to protect operator health and maximise efficiency.
As a result, the machines require minimal operator training. They are easy to operate, which also helps to reduce downtime and ensures more efficient operations.
Efficiency
Optimum power and performance without overspecification
- Intuitive, straightforward mechanical controls reduce training time and boost productivity from day one.
- Highly efficient, long-lasting Li-ion batteries are fast charging with no ill-effect from partial charging. In combination with the in-built Battery Management System (BMS), continuous workflow is simplified.
Safety
Prioritising safety and safer working environments
- Stability is integral to our design.
- Security functions, e.g. PIN code and RFID access, restrict use to authorised operators.
- Flexible options and specifications to suit specific applications.
Comfort
Streamlined without compromising comfort
- TCM’s ergonomics expertise prioritises operator comfort.
- Exceptional features, e.g. a multi-functional tiller head with creep button, enhance comfort and control.
- Intuitive features, e.g. automatic speed reduction in curves, promote safer handling of unstable loads, reducing the risk of accidents and damage.
Li-ion technology
Lithium-ion batteries can offer real advantages over lead-acid batteries, particularly in high energy, multi-shift and 24/7 applications. When it comes to Total Cost of Ownership (TCO), TCM can advise you on the most cost-effective energy solution to meet all your operational requirements.
Like every TCM solution, Li-ion batteries are engineered for ultimate reliability and high performance even in the toughest environments.
We simplify procurement, servicing and warranty claims by keeping everything under one trusted brand, TCM.
Products
Electric counterbalance forklift trucks
3-wheel counterbalance truck - FTB16-20-Q1
With load capacities of 1600 and 2000 kg and lift heights of up to 6 metres, the TCM F(T)B16-20-Q1 models deliver optimum performance. The 3-wheel and 4-wheel trucks are designed for light to medium duty applications, indoors or outdoors, ensuring efficient operation.
Simple mechanical controls reduce training time and boost productivity from day one. The ergonomic seat minimises exposure to vibration, reducing operator fatigue and helping concentration.
Excellent shock absorption, supported by superelastic (solid rubber) front and rear tyres, ensures smooth handling and longer service life, even on uneven surfaces.
The road lighting package (including hazard lights) meets visibility requirements, so the truck can be used safely both indoors and outdoors. The Blue Spot warning light projects a clearly visible light onto the floor to alert pedestrians, reducing the risk of collisions in busy areas. A highly visible flashing beacon increases safety in low-light conditions.
The reversing alarm raises awareness and helps prevent accidents during reversing manoeuvres. A wide-view mirror eliminates blind spots for safer travel.
Thanks to the maintenance-free Li-ion battery, which needs no watering, contains no lead-acid technology and can be fast and opportunity charged, the truck is always ready for work.
Lift capacity: 1600 / 2000 kg
Lift height: up to 6 metres
4-wheel counterbalance truck - FB16-20-Q1
With load capacities of 1600 and 2000 kg and lift heights of up to 6 metres, the TCM F(T)B16-20-Q1 models deliver optimum performance. The 3-wheel and 4-wheel trucks are designed for light to medium duty applications, indoors or outdoors, ensuring efficient operation.
Simple mechanical controls reduce training time and boost productivity from day one. The ergonomic seat minimises exposure to vibration, reducing operator fatigue and helping concentration.
Excellent shock absorption, supported by superelastic (solid rubber) front and rear tyres, ensures smooth handling and longer service life, even on uneven surfaces.
The road lighting package (including hazard lights) meets visibility requirements, so the truck can be used safely both indoors and outdoors. The Blue Spot warning light projects a clearly visible light onto the floor to alert pedestrians, reducing the risk of collisions in busy areas. A highly visible flashing beacon increases safety in low-light conditions.
The reversing alarm raises awareness and helps prevent accidents during reversing manoeuvres. A wide-view mirror eliminates blind spots for safer travel.
Thanks to the maintenance-free Li-ion battery, which needs no watering, contains no lead-acid technology and can be fast and opportunity charged, the truck is always ready for work.
Lift capacity: 1600 / 2000 kg
Lift height: up to 6 metres
4-wheel counterbalance truck - FB25-35(L)-Q1
With load capacities of 2500, 3000 and 3500 kg and lift heights of up to 6 metres, the TCM FB25-35(L)-Q1 delivers optimum performance and stability for more demanding indoor and outdoor tasks, providing power and reliability where it matters most.
These models feature user-friendly operation with simple, easy-to-use controls that reduce operator strain. The suspended KL01 seat increases comfort and reduces vibration for fatigue-free work.
A PVC cover fitted to the standard overhead guard protects against bad weather and falling objects, increasing operator safety.
Excellent shock absorption, supported by superelastic (solid rubber) front and rear tyres, ensures smooth handling and longer service life, even on uneven surfaces.
The maintenance-free lithium-ion battery (no lead-acid technology) guarantees continuous availability and a lower total cost of ownership.
The road lighting package (including hazard lights) meets visibility requirements and makes indoor and outdoor work safer. The reversing alarm raises awareness and helps prevent accidents during reversing manoeuvres. A panoramic mirror eliminates blind spots for safer travel.
Lift capacity: 2500 / 3000 / 3500 kg
Lift height: up to 6 metres
Pedestrian electric pallet trucks
Pedestrian powered pallet truck - PWL15-20E-Q2
With an all-metal cover and integrated rocker arm, this pallet truck is built for durability, stability and strength with a load capacity of 1500 kg to 2000 kg. Its small dimensions and innovative braking make for efficient and agile manoeuvring. Powered by a high-capacity lithium-ion battery with fast charging and a battery exchange of up to 10 seconds.
Compact pedestrian pallet truck - PWL16-20-Q2
With a robust frame, side castor wheels and low maintenance AC drive motor, the truck is simple to run and provides stability and durability at a load capacity of 1600 kg to 2000 kg.
The high power, long-lasting lithium-ion battery reduces downtime and can be charged externally for continual use, while a battery heating system enables operating temperatures down to 1 °C.
Pedestrian pallet truck with rider platform - PPL20-Q2
With a robust frame and low-maintenance AC drive motor, this pallet truck is designed for stability and durability for loads up to 2000 kg. Powered by a high-capacity lithium-ion battery, it reduces downtime for maximum efficiency.
Its heating system enables it to operate in colder temperatures of 1 °C. Designed with an innovative braking system, its ergonomic engineering helps to reduce operator strain for ultimate comfort.
Pedestrian stackers for double pallet handling
Pedestrian stacker - PSL12M-Q2
Compact and lightweight, with initial lift and a load capacity of 1200 kg, the TCM PSL12M-Q2 is designed for light-duty tasks, double pallet handling and work that requires agility in narrow aisles and on mezzanines. It increases productivity and reduces operator fatigue. The steel frame provides robust protection against impacts, reducing maintenance costs and extending the life of the truck.
The high-capacity, fast-charging 24 V/60 Ah lithium-ion battery is long-lasting, maintenance-free and low in running costs. With a built-in Battery Management System (BMS) and an integrated charger, it can be charged anywhere.
The ergonomic, multi-functional tiller arm with creep function, which allows travel with the tiller in the upright position, improves operator comfort and control, especially in tight spaces.
Automatic speed reduction in curves makes handling less stable loads safer, reducing the risk of accidents and damage. The single (mono) mast design is ideal for mezzanine work and lower lift heights, offering a compact and efficient handling solution.
PIN code access restricts use to authorised operators, while RFID access provides maximum security and fleet control. A conveniently located external diagnostic port speeds up servicing and troubleshooting.
Lift capacity: 1200 kg
Lift height: up to 2 metres
Pedestrian stacker with double pallet handling - PSL12E(I)-Q2
Compact and lightweight, the PSL12E(I)-Q2 models (PSL12E-Q2 and PSL12EI-Q2) are capable of carrying two pallets at once, available without or with initial lift and with a load capacity of 1200 kg. They are designed for light-duty use and agility in narrow aisles, increasing productivity and reducing operator fatigue.
The steel chassis cover provides robust protection against impacts, reducing maintenance costs and extending the life of the truck.
The high-capacity, fast-charging 24 V/60 Ah lithium-ion battery offers a durable, low-cost and maintenance-free solution. With a built-in Battery Management System (BMS) and an integrated charger, it can be charged anywhere.
The ergonomic, multi-functional tiller arm improves comfort and control, especially in tight spaces. Automatic speed reduction in curves makes handling unstable loads safer, reducing the risk of accidents and damage. The duplex mast, ideal for mezzanine warehouses and moderate lift heights, provides a compact and efficient handling solution.
PIN code access restricts use to authorised operators, while RFID access guarantees maximum security and fleet control. A conveniently located external diagnostic port speeds up servicing and troubleshooting.
Lift capacity: 1200 kg
Lift height: up to 3.6 metres
Pedestrian stacker with double pallet handling - PSW13E(I)-Q2
Compact and lightweight, the TCM PSW13E-Q2 and PSW13EI-Q2 models have a load capacity of 1300 kg and are also available in a double pallet handling version (with or without initial lift). They are designed for light, everyday handling tasks and agility in confined warehouse spaces. The steel cover provides robust protection against impacts, reducing maintenance costs and extending the life of the truck.
The high-capacity, fast-charging 24 V/100 Ah lithium-ion battery is long-lasting, maintenance-free and keeps running costs low. With a built-in Battery Management System (BMS) and an integrated charger, it can be charged anywhere. A built-in USB port is also provided for charging essential devices such as barcode scanners and mobile phones.
The ergonomic, multi-functional tiller arm with creep function improves operator comfort and control. Automatic speed reduction in curves makes handling unstable loads safer, reducing the risk of accidents and damage. The free-lift duplex mast (on the PSW13EI-Q2) is ideal for safe and efficient handling in areas with low ceilings, while the clear mast guard improves the operator’s visibility.
PIN code access restricts use to authorised operators, while RFID access guarantees maximum security and fleet control. A conveniently located external diagnostic port speeds up servicing and troubleshooting.
Lift capacity: 1300 kg
Lift height: up to 4.3 metres
Mini order picker

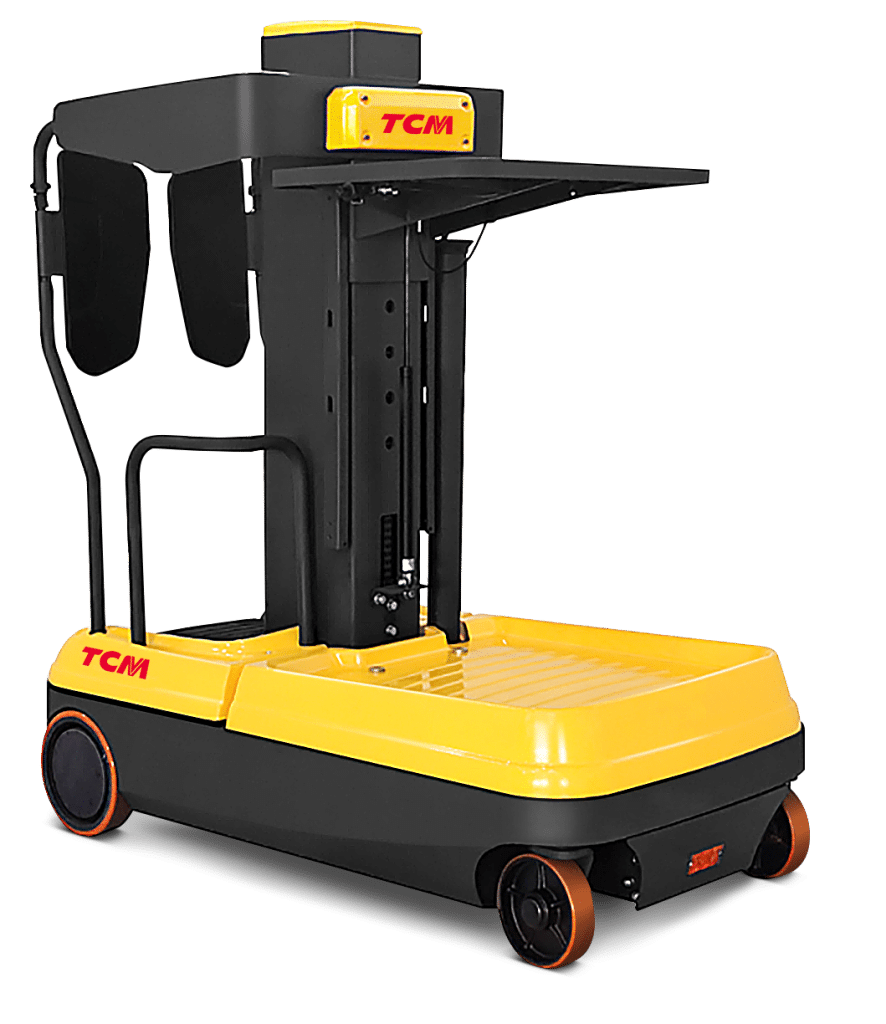

Mini order picker - OPM038-Q2
Built with a low-maintenance AC drive motor, this order picker boasts stability and safety at a lift height of 3 metres.
Operator safety and control are optimised with adjustable features, sensors and high visibility. Powered by a lithium-ion battery, this order picker provides high capacity and high power for simple, efficient, cost-effective operations.
Tow tractor
Sit-on tow tractor - TTS30-60-Q2
With a robust frame and low maintenance AC motor with an IP65 AC controller, this tow tractor is designed for performance and durability.
The high-capacity lithium-ion battery is fast charging to reduce downtime and its heating system enables operation at 1 °C. Available with 3000 kg and 6000 kg load capacity. Adjustable features and sensors ensure operator safety, while surrounding LED lights increase visibility.
Material handling at an affordable price
Enjoy quality engineering, cost-efficiency and greater sustainability with our streamlined Lite Range that is easy to use and easy to maintain.
If you need machines with higher speed and capacity for more intensive applications, explore our standard product range to find the best fit for your business.
Two product ranges: AdVnce and LITE
Trust in TCM’s world-class engineering DNA, delivering robust manufacture, ultimate reliability, exceptional safety features and long-term performance, backed up with an enviable after-sales service and support network.
TCM’s innovative range of material handling solutions falls into two clear product ranges, grouped by intensity of application and level of specification required:
AdVnce
For businesses requiring more advanced, robust solutions for high intensity, multi-shift and complex, specialist applications.
The ultimate range built to excel in all environments, with advanced features and technology to make easy work of high intensity and multi-shift operations.
Long lasting, high return. Ultimate precision, power and performance.
LITE
For small to medium sized businesses and single truck operators requiring a truck for intermittent or less demanding tasks and grab-and-go applications.
A competitive and affordable range of material handling equipment intended for low to medium intensity operations. Streamlined for ease of use, simple maintenance and great value.
Easy to use, simple to maintain.
All trucks are backed by our excellent global service and support network. Businesses may select a combination of models from the two ranges to best match the type and intensity of their applications.
