TCM-PWL15E-Q1

TCM-PWL15E-Q1

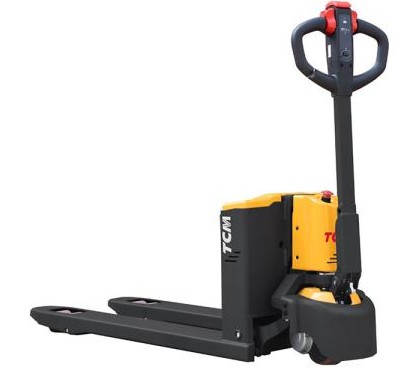

The TCM PWL15E-Q1 is a compact 1,500 kg pedestrian electric pallet truck from the TCM Lite range, powered by a 24V lithium-ion battery. A 10-second battery swap and an externally charged spare battery (approx. 3 hours) enable continuous multi-shift operation. Regenerative braking, a tight turning radius, and Turtle Mode make it safe and efficient in narrow warehouse aisles.
€990

Load capacity: 1,500 kg
Load center distance: 600 mm
Country of origin: China
Manufacturer: MLE BV
Year of manufacture: 2024 (new)
VTSZ: 84271090

Dimensions:
- Forklift length without forks: 395 mm
- Width: 550 mm
- External width of forks: 550 mm
- Fork length: 1,150 mm
- Weight: 135 kg
- Turning radius: 1,345 mm
- AST working aisle width: 2,015 mm
(800*1200 mm, lengthwise)

Drive:
- drive motor power: 0.75 kW
- hydraulic motor power: 0.80 kW

Features:
- flexible and energy-efficient
- suitable for use in confined spaces
- versatile and efficient
- easy to operate
- comfortable and safe to use
- compact, short design makes it very maneuverable
- battery charge indicator
- vulcanized double rollers
- support wheels
- CE declaration of conformity

Battery:
24V 25Ah lithium-ion battery

Charger:
24V 10A charger for the battery
